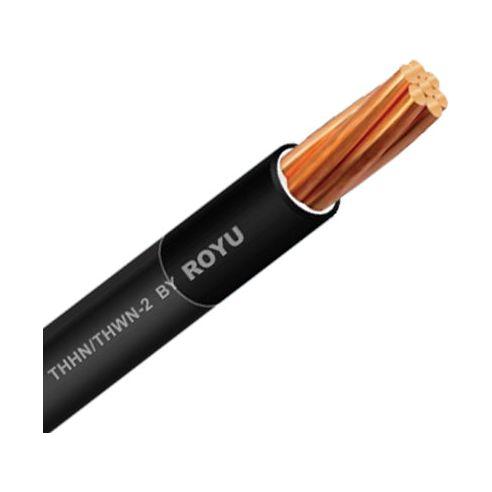

Royu RTN12A 3.5mm² THHN/THWN-2 Conventional Stranded Building Wires

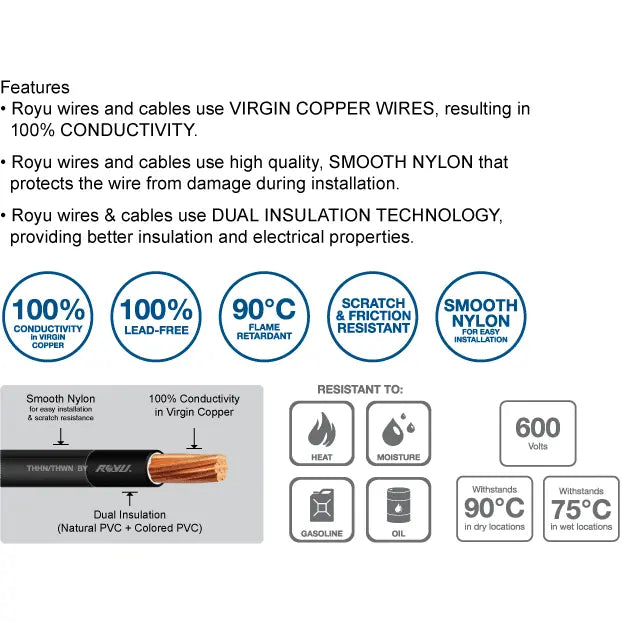

- Thermoplastic High Heat Resistant with Nylon / Thermoplastic Heat and Water-Resistant with Nylon
- 100% Conductivity Virgin Copper Lead-Free Insulation Quality Product
- Flame Retardant
- Scratch & Friction Resistant
- Smooth Nylon for easy installation
Model | Gauge | Size |
Amps (*90° Single Wire) |
"Amps ( **90° up to
""3 wires"")" |
RTN12A
|
12 AWG
|
3.5mm²
|
40
|
30
|
Model | Color | M/Pkg | Price |
RTN12A
|
Red,White, Black | 75M/Box | 2,471.04 |
Red,Yellow,Green,Blue,White,Black | 150M/Box | 4,942.08 | |
Red,White, Black | 500M/Spool | 16,473.60 |
*Allowable Ampacities of Single-Insulated Conductors rated Up to and Including 2000Volts in Free Air, Based on Ambient Temperature of 30°C
**Allowable Ampacities of Insulated Conductors rated Up to and Including 2000Volts in Free Air, Not more than Three Current-Carrying Conductors in
Raceway, Cable, or Earth(directly burried), Based on Ambient Temperature of 30°C
