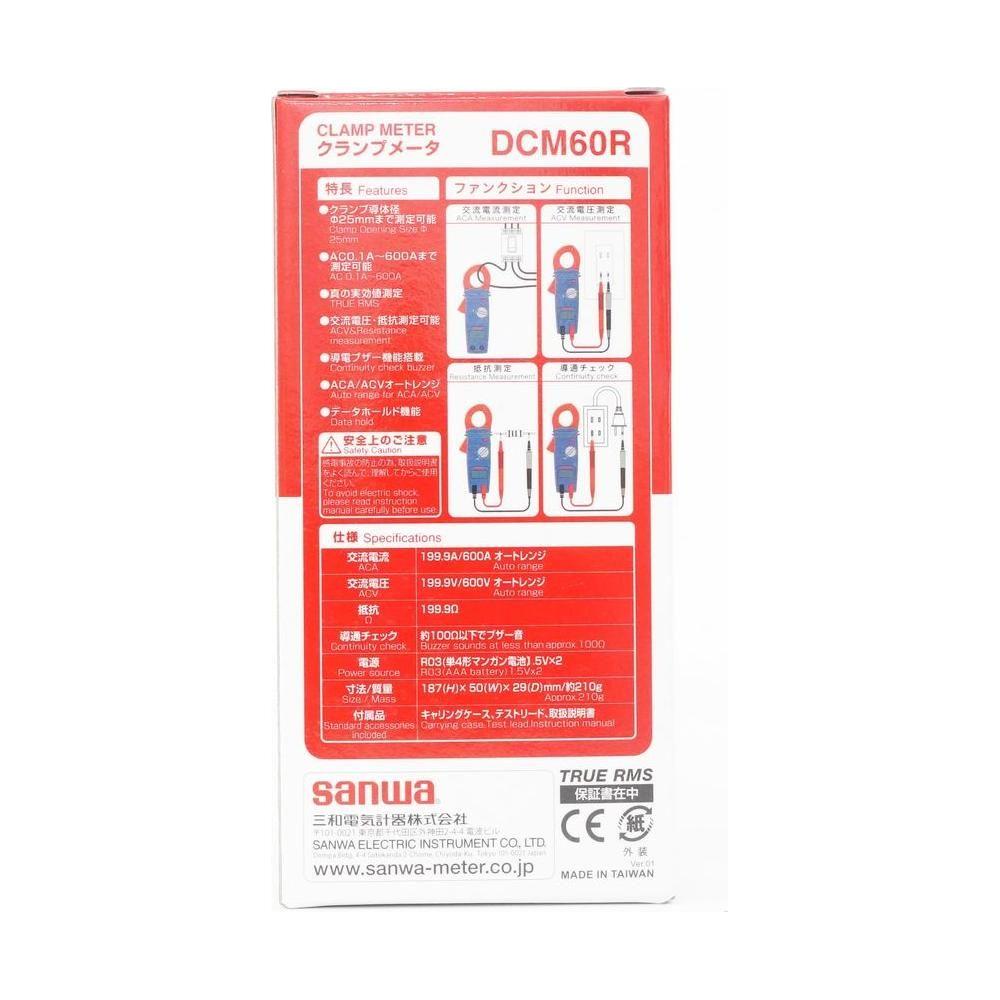

Sanwa DCM60R Digital Clamp Meter / Tester

by Sanwa
₱5,775.00
-
Low cost & DMM functions
  • True RMS
  • Measurable AC 0.1A~600A
  • ACV & Resistance measurement
  • Small design & easy to carry
  • Data hold
  • Continuity check buzzer

Sampling rate : approx.2 times / sec.
AC frequency bandwidth : 50~400Hz
Safety : IEC61010-1,
    IEC61010-2-030 CAT.III300V /CAT.II600V,
IEC61010-2-032, IEC61010-2-033, IEC61010-31

DCM60R Measuring range Best accuracy Resolution
ACA 199.9/600A ±(2%+5)(50~60Hz) 0.1A
±(2.9%+5)(60~400Hz)
ACV 199.9/600V ±(1.5%+5)(50~400Hz) 0.1V
Resistance 199.9Ω ±(1.0%+8) 0.1Ω
Continuity Buzzer sounds at less than approx. 100Ω Open voltage : approx.1.0V
Bandwidth 50~400Hz
Display 1999
Clamp diameter/ 25mm / 10 x 30mm
Conductor size
Battery R03 x 2
Size / Mass H187 x W50 x D29mm / approx. 210g
Standard accessories included Test lead(TL-21a), Carrying case(C-DCM60L), Instruction manual
