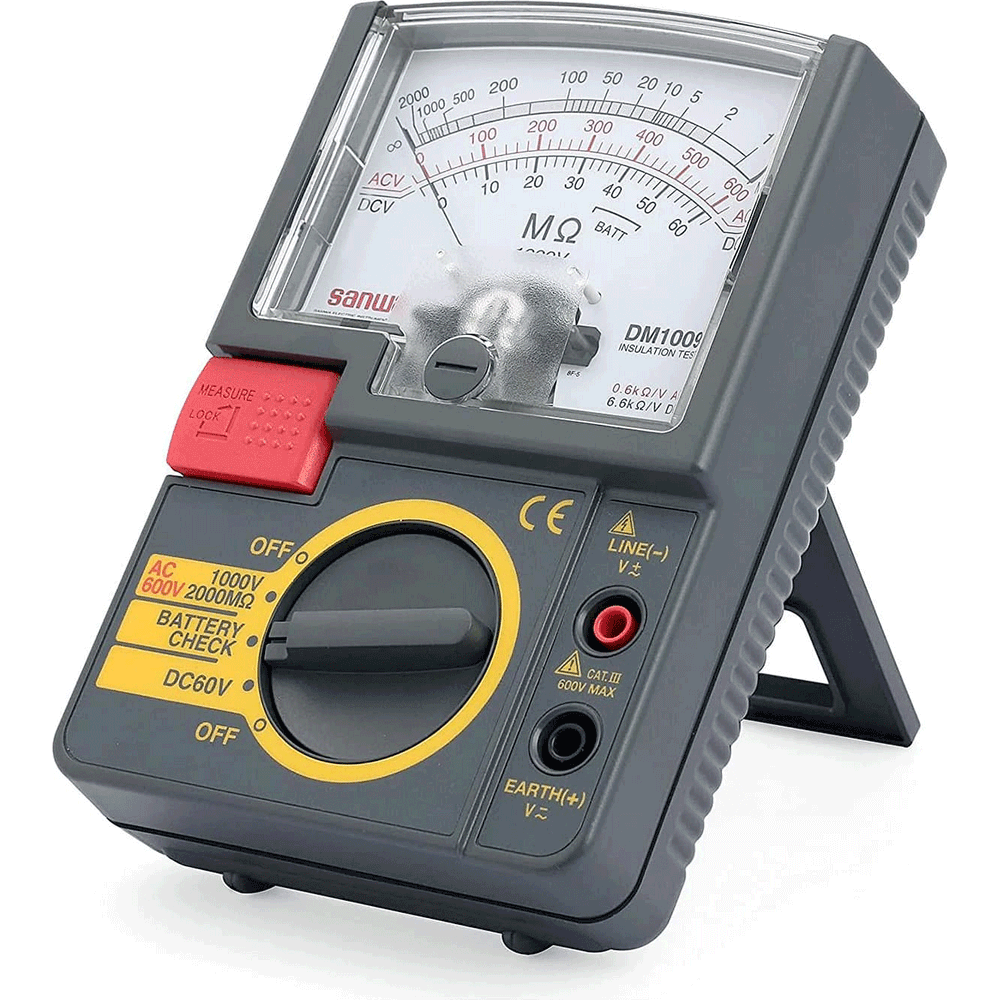

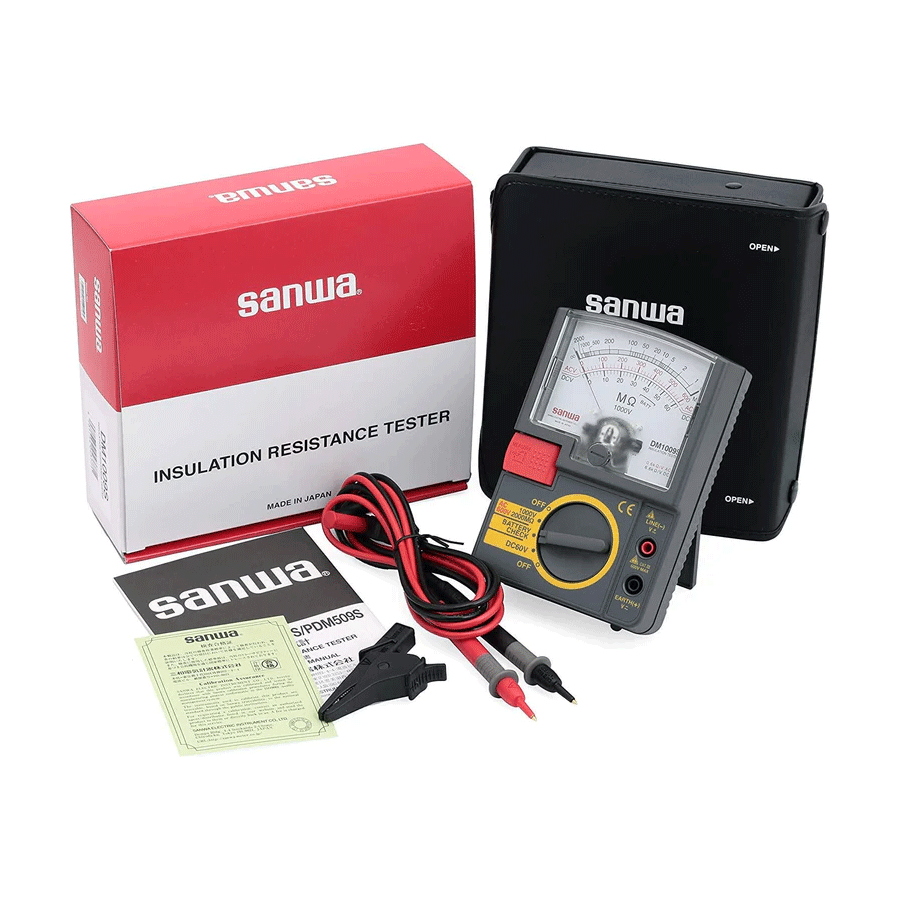

Sanwa DM1009s Analog Insulation Resistance Tester 1000V/2000MΩ
- One-shot or continuous measurement push switch
- DCV measurement range (DC60V)
- Auto discharge function
- Inner battery check range
- Shoulder Strap
Scale(MΩ) | 1~2~1000~2000MΩ |
Tolerance | ± 5% of reading(1st effective measurement range : written in thick print above) ±10% of reading(2nd effective measurement range : written in small type above) |
ACV | 600V |
Tolerance | Within ±5% of the max. scale value(50~60Hz sine wave) |
DCV | 60V |
Tolerance | Within ±5% of the max. scale value |
Rated current | 1.0~1.2mA |
Battery | 6LF22/6LR61(9V alkaline battery)x1 |
Size/Mass | H144×W99×D43mm/Approx. 310g |
Safety standard | IEC61010 CAT.Ⅲ 600V |
