Sanwa

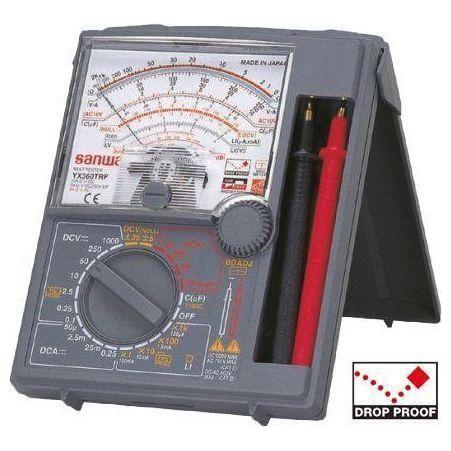

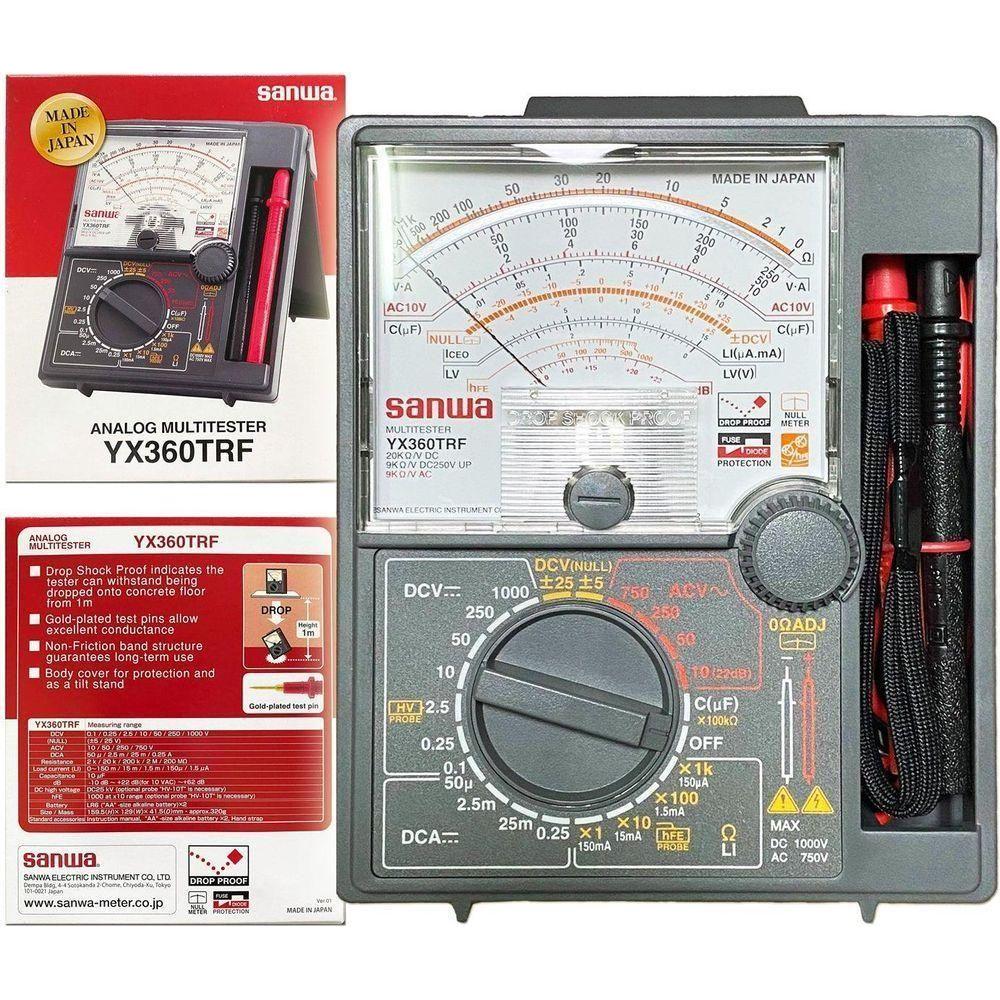

Sanwa YX360TRF Analog Multi Tester ( Drop Shockproof )
Product SKU: 631580996715
Available:
Only 94 items in stock
94 items in stock
In stock
Pre-order
Out of stock
₱1,950.00
Want it delivered by
ORIGINAL 100% Genuine
Beware of Fake
Made in Japan
Best seller drop shock proof meter
- Drop shock proof meter
- Null (zero center) meter ±5 / ±25 in DCV
- High resistance up to 200MΩ with low voltage
- Protective body cover
- Capacitance, dB, Li measurement
Bandwidth : 30～100kHz (AC10V)
Optional accessories
hFE probe : HFE-6T
Clip adapter : CL-11, CL-15a, CL-DG3a, TL-8IC
High voltage probe : HV-10T
| YX360TRF | Measuring range | Accuracy |
| DCV | 0.1V (20kΩ / V) | ±5% of full scale |
| (NULL) | 0.25 / 2.5 / 10 / 50 (20kΩ / V) / 250 / 1000V(9kΩ / V) | ±3% of full scale |
| ±5 / 25V (40kΩ / V) | ±5% of full scale | |
| ACV | 10 / 50 / 250 / 750V (9kΩ / V) | ±4% of full scale |
| Resistance | 2k / 20k / 200k / 2MΩ (X1 / X10 / X100 / X1k) | ±3% of arc |
| 200MΩ (X100k) | ±5% of arc | |
| Load current (LI) 0～150m / 15m / 1.5m / 150μ / 1.5μA | ||
| Capacitance 10μF | *2 | |
| dB | -10dB～+22dB (for 10VAC) ～+62dB | - |
| DC high voltage | DC25kV (optional probe "HV-10T" is necessary) | - |
| hFE | 1000 at ×10 range (optional probe "HFE-6T" is necessary) | - |
| Battery | R6 (IEC) or UM-3(1.5V)×2 | |
| Fuse | φ5.2×20mm (250V / 0.5A) | |
| Size / Mass | H159.5×W129×D41.5mm / approx. 320g | |
| Standard accessories | Instruction manual, Hand strap | |
| The value in bracket at DCV and ACV is input resistance. | ||
| *1 Not including the resistance of fuse. | ||
| *2 Pointer indication of the maximum move by charged current in the capacitor | ||
