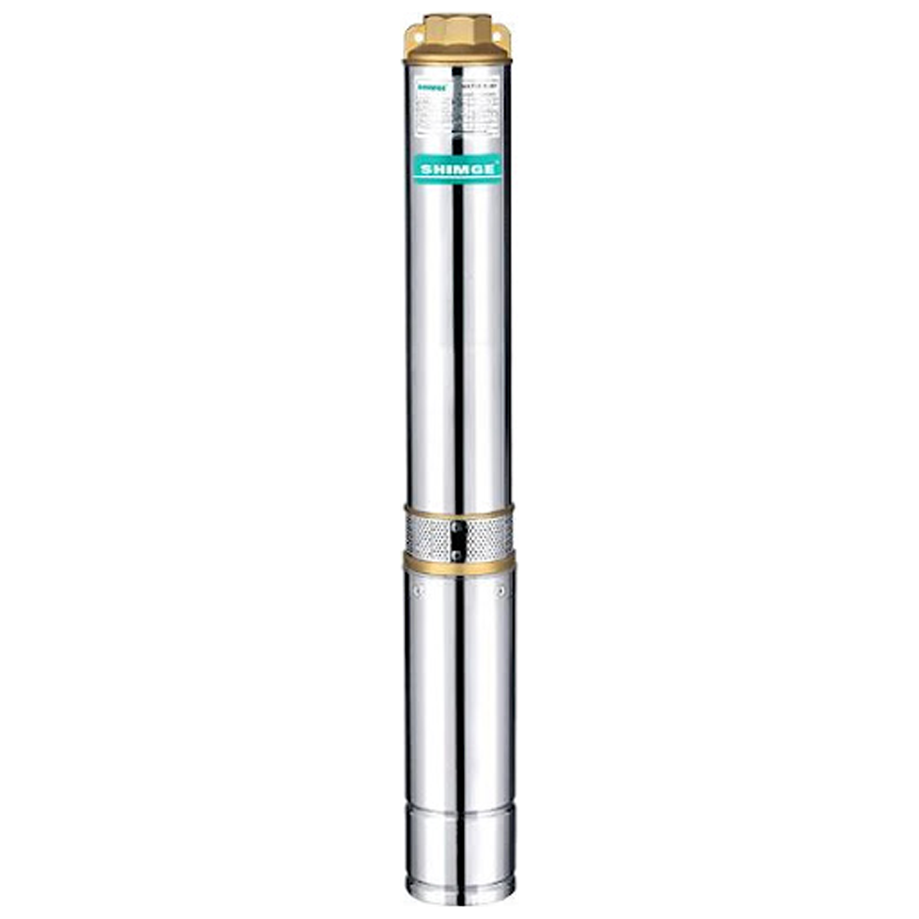

Shimge 4SPM Submersible Deep Well Pump
100% Copper Thermally-Protected
Application Fields
Building / Construction work / Domestic water supply: irrigation and small water work; landscaping, water conservancy system and factory.
Features
- Cable Size: 2.3M
- Max. ambient temperature < 40℃;
- Sand content(in mass fraction)up to 0.01%;
- Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
- pH 6.5 to 8.5;
- Maximum: 70m below the static water table.
- Engineering plastic impeller and stainless steel shaft
- available with cable, motor plug and control box
- Edible oil filed motor, stable and reliable running with pressure regulating membrane
Model | Rated Power (HP) |
Head Range (m) | Max Flow (m3/h) |
Rated Flow (m3/h) | Outlet Diameter (MM) | PRICE |
4SPm4/11-1.5 | 2Hp | 69-109 | 8 | 4 | 1.25 | 25,000.00 |
4SPm4/16-2.2 | 3HP | 96-157 | 8 | 4 | 1.25 | 30,000.00 |
4SPm6/8-1.5 | 2Hp | 44-97 | 12 | 6 | 1.50 | 25,000.00 |
4SPm6/12-2.2 | 3HP | 66-116 | 12 | 6 | 1.50 | 32,000.00 |
6 Months Service Warranty
