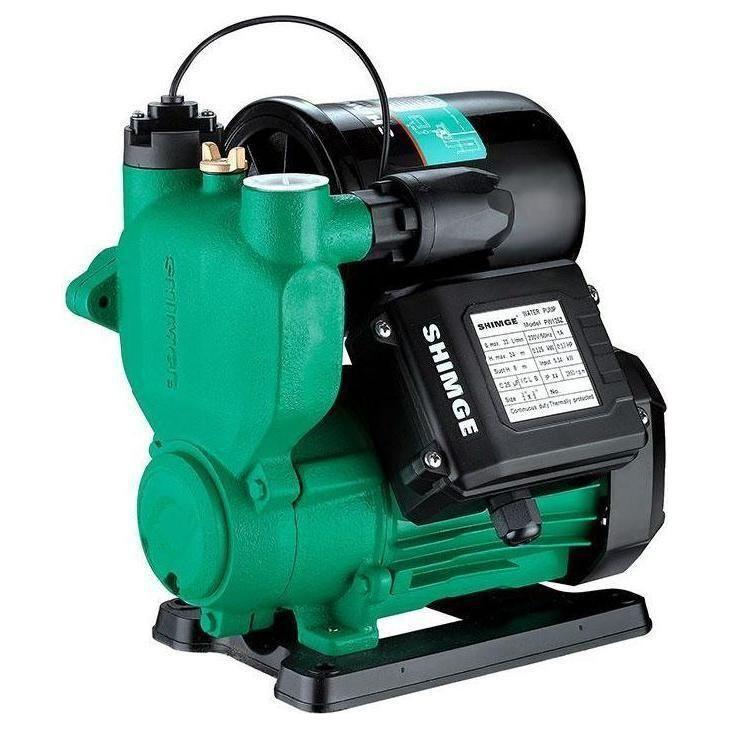

Shimge PW-Z Self-Priming Peripheral Pump

by Shimge
Sale
Original price ₱6,645.00
Current price ₱4,650.00
-

Shimge Pump Ltd is a famous China pump manufacturer,  offering pump products for agricultural, industrial, commercial, residential areas.


100% Copper
Thermally-Protected

A self-priming peripheral pump for both hot and cold water. Advanced structure with lower noise. Intelligent control by both flow sensor and pressure sensor, which is convenient .

Application fields

  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
  • Widely used in household water supply, well water pumping, tap water pressure, water tower's supply, solar or hot water systems pressure, etc.

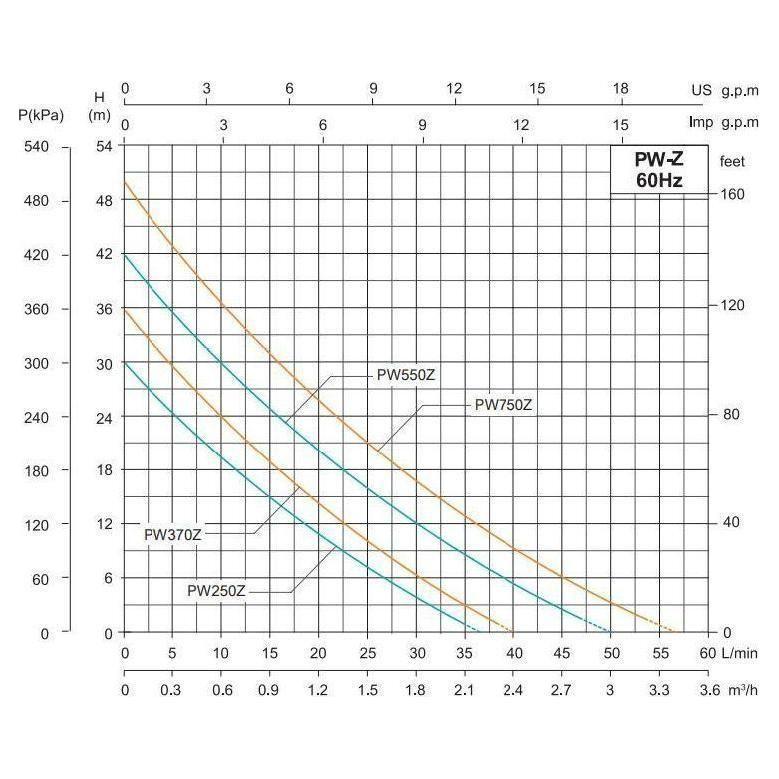

Specifications

Model PW370Z PW550Z PW750Z
Rated Power (Kw) 0.37 0.55 0.75
Rated Power (HP) 0.5 0.8 1
Rated Voltage (V/Hz) 220/60 220/60 220/60
Max Head (m) 33 42 50
Max Flow (m3/h) 2.4 3 3.4
Head Range (m) 1-32m 1.5-38m 1.5-46m
Max Suction (m) 8 8 8
Price 4,650.00 5,250.00 5,600.00



Operating condition

  • Suction lift up to 8m
  • Liquid temperature =+90°C
  • Environment temperature = +40°C
  • Max. working pressure: 5bar

Features and advantages

  • A self-priming peripheral pump for both hot and cold water.
  • Advanced structure with lower noise.
  • Intelligent control by both flow sensor and pressure sensor, which is convenient .

Materials

  • Pump body: Cast iron with stainless steel insert
  • Motor casing: Aluminum
  • Impeller: Brass
  • Shaft:Welded by SUS304 and Cs45#
  • Mechanical seal:Ceramic/Graphite/NBR
  • Copper winding

Video Showcase



6 Months Service Warranty
