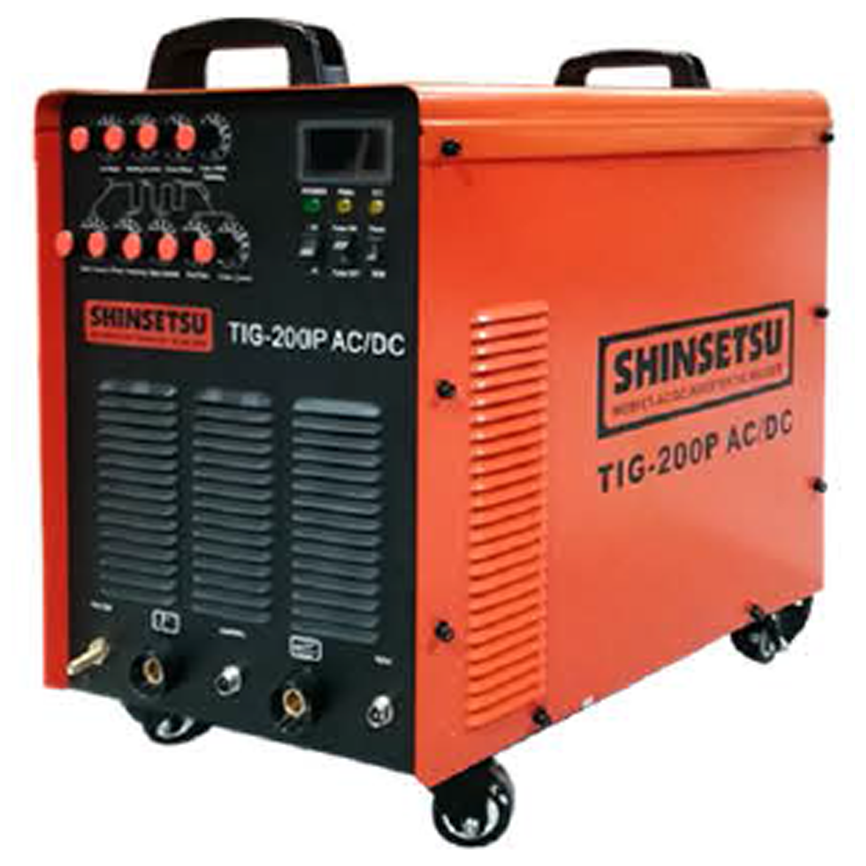

Shinsetsu TIG-200P AC / DC Inverter Tig Welding Machine 300A

Shinsetsu TIG-200P AC / DC  Inverter Tig Welding Machine 300A

Pulse TIG
Input Power:   220 V ~ 15%
Frequency:    60 Hz
Phase:   1PH
Rated Input Power:    5.6 kVA /6.5 kVA
Rated Duty Cycle:    60 %
Output Amperage Range (TIG): 10 - 200 A/ 20 - 160 A
Current Adjustment Range (TIG):  10 - 200 A I 20 - 160 A
Rated Working Voltage: 22
Output No-Load Voltage: 56V
Efficiency:  0.85
Initiation Mode:  HF
Power Factor:   0.76
Protection Class:  IP23
Dimension:  765 x 455 630 mm
Gross Weight:   34Kg

Welding Parameters:

Pulse Frequency: 0.5 - 300 Hz
Up Slope Time: O - 5 S
Down Slope Time: O - 5 S
Post Flow Time: 1 - 10 S
Pulse Base Current: 20 - 90 %

Inclusions:

1 pc KGW-Bl -Kobewel Welding Glass
2 pcs Tungsten (l.6 x 2.4 mm)
1 pc TIG Torch
1 pc Collet Body
2 pcs Tungsten Electrode
1 pc Short Cap
1 pc Long Cap
3 pcs Alumina Cap
3 pcs Collet
3 mtr Welding Cable with Ground Clamp

6 Months Parts & Service Warranty
