Showfou Electric Machine Co.,ltd., Taiwan manufacturer of all kinds of water pump and has been the top choice in submersible pumps in the Philippines.

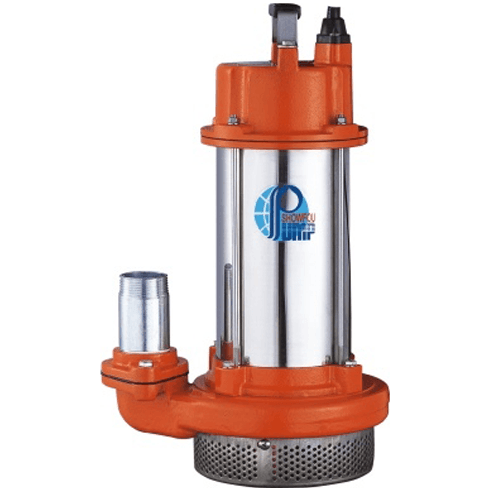

(SH) "Clean Water"
Note: Photo is for reference only.
Features
- Ranging from 1 ~7.5HP
- Single Phase is available for 1,2 & 3HP
- 2 poles motor design
- Closed Bronze impeller designed for the clean water pumping use
- Motor casing made of SUS 304
- Stainless Steel 304 Strainer
|
Model
|
Price
|
| SH-112N | 17,500.00 |
| SH-212HN/D | 31,200.00 |
| SH-312H/D | 40,200.00 |
| SH-532 | 63,000.00 |
| SH-732 | 88,000.00 |
| SH-1032 | 98,000.00 |
|
Type
|
Motor | ||
| Power | Phase | Volt | |
| HP | PH | V | |
| SH-112N | 1 | 1 | 220 |
| SH-212HN | 2 | 1 | 220 |
| SH-312H | 3 | 1 | 220 |
| SH-532 | 5 | 3 | 220 |
| SH-732 | 7.5 | 3 | 220 |
| SH-1032 | 10 | 3 | 220 |
|
Type
|
Pump | ||
| Bore | Max. Head | Max. Flow | |
| Inch | M | L/min | |
| SH-112N | 1.5" | 25 | 200 |
| SH-212HN | 2" | 30 | 350 |
| SH-312H | 3" | 35 | 450 |
| SH-532 | 3" | 40 | 600 |
| SH-732 | 4" | 46 | 800 |
| SH-1032 | 4" | 50 | 1,080 |
|
Type
|
Cable
|
Wt.
|
| M | Kg | |
| SH-112N | 6 | 23 |
| SH-212HN | 10 | 30 |
| SH-312H | 10 | 46 |
| SH-532 | 10 | 49 |
| SH-732 | 10 | 77 |
| SH-1032 | - | - |
3 Months Service Warranty
