SKC Japan Hand Tap Set ( English Thread )
Made in Japan

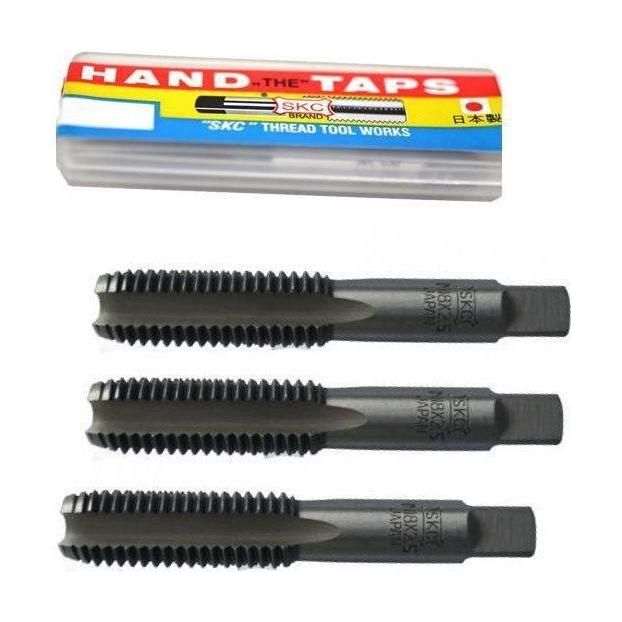

3-pc Hand Tap Set
ENGLISH THREAD
|
TAPER 8 to 10 threads chamfered for easy thread starting in rough materials |
 |
PLUG 3 to 5 threads chamfered - general use when tapping to bottom of holes is not critical. ( This is the most widely used type of tap. ) |
 |
BOTTOMING 1-1/2" Threads chamfered - use after threads have been started for tapping to bottom of hole. |
Discounts may apply for bulk order.
| Nominal Dia. (Inch) | Thread per inch | Price |
| 3/32" | NC48 / NF56 | 369.75 |
| 1/8" | NC40 / NF44 | 173.40 |
| 5/32" | NC32 / NF36 | 173.40 |
| 3/16" | NC24 / NF32 | 178.50 |
| 7/32" | NC24 / NF28 | 188.70 |
| 1/4" | NC20 / NF28 | 188.70 |
| 5/16" | NC18 / NF24 | 252.45 |
| 3/8" | NC16 / NF24 | 306.00 |
| 7/16" | NC14 / NF20 | 359.55 |
| 1/2" | NC13 / NF20 | 408.00 |
| 9/16" | NC12 / NF18 | 586.50 |
| 5/8" | NC11 /NF18 | 714.00 |
| 11/16" | NC11 | 988.55 |
| 3/4" | NC10 / NF16 | 988.55 |
| 7/8" | NC9 / NF14 | 1,275.00 |
| 1" | NC8 / NF12 | 1,785.00 |
| 1-1/8" | NC7 | 3,697.50 |
| 1-1/4" | NC7 | 5,355.00 |
| 1-1/2" | NC6 | 7,012.50 |
