Stihl UP 4 Portable Fire Pump with Accessories 50KW

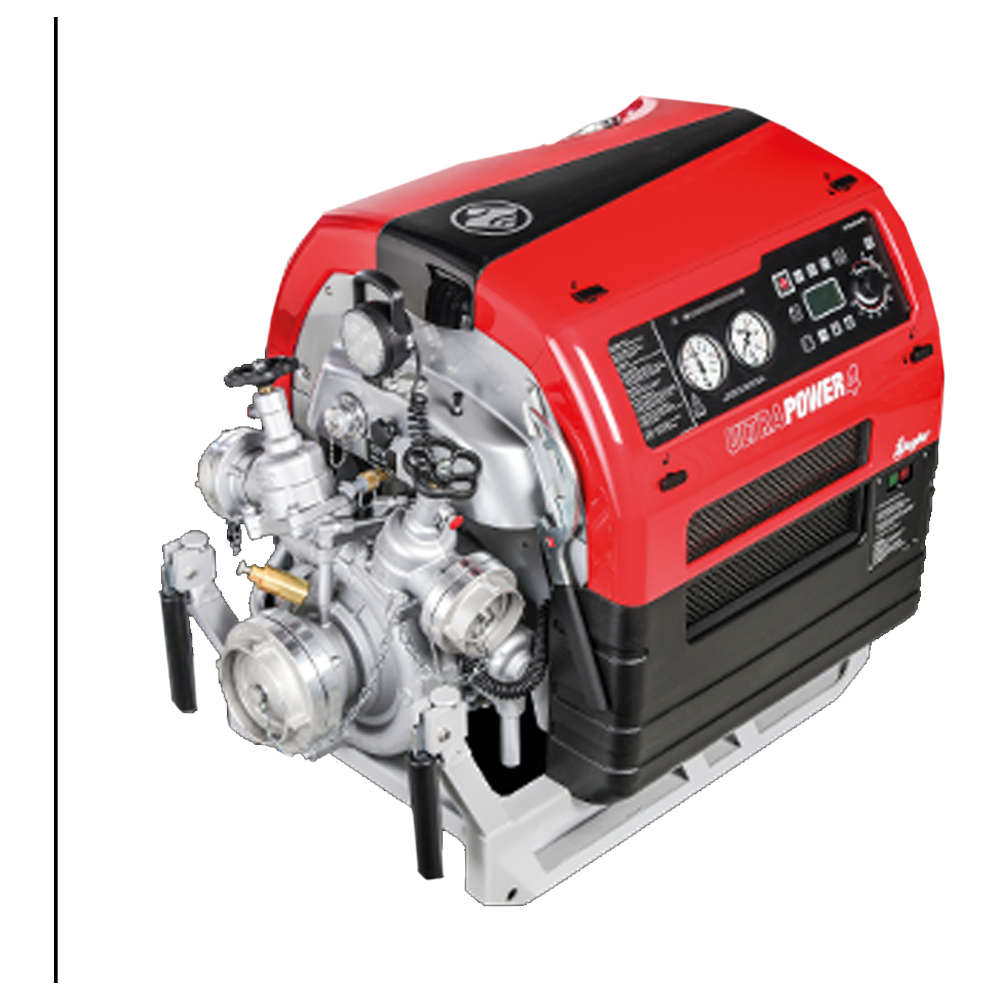

Stihl UP 4 Portable Fire Pump 50KW

Portable pump with Volkswagen 3 cylinder 4 stroke aluminum engine with electronic fuel
injection designed as PFPN 10-1000 and 10-1500 tested according to EN 14466.
Simplest operation due to automatic engagement of the pump. The ULTRA POWER 4 is the
most powerful portable pump according to EN 14466. The pump operator will be relieved
thanks to an automatic control of the outlet pressure of the Tourmat D. The pumping
operation is possible without additional switching

Features:
▪ Simplest operation
▪ Automatic centrifugal clutch operation
▪ Illuminated display (day and night)
▪ Pump pressure governor Tourmat D
▪ Compact external dimensions
▪ Worldwide service network
▪ Comprehensive accessories

NOMINAL OUTPUT 1000 l/min at 10 bar and 3 m geod. suction height
1500 l/min at 10 bar and 3 m geod. suction height
PUMP OUTPUT
• at 3 m geod. suction height approx. 1900 l/min at 10 bar
• at 3 m geod. suction height 2000 l/min at 8 bar
• at 1,5 m geod. suction height 2150 l/min at 4 bar
• at 7,5 m geod. suction height 1050 l/min at 8 bar
SUCTION TIME • 5 s at 3 m geod. suction height
• 19 s at 7,5 m geod. suction height

PUMP
• FPN 101500- according to EN 1028
• One-stage centrifugal fire pump of high efficiency.
• Water-bearing parts of sea-water resistant light alloy or stainless steel.
• Sealing of the pump by radial seals.
• With suction inlet size A and two delivery outlets size B with self-sealing screw-down
valves, all of them with tight couplings and blank caps.
• Power transmission from engine via automatic centrifugal clutch.
PRIMING SYSTEM Proven fully automatic TROKOMAT PLUS

GAUGES AND CONTROLS
• All control elements are functionally integrated in the cowling.
• Pressure gauge and mano-vacuummeter
• Start button
• Turning handle for throttle (controls electronically)
• Control panel with bright LED lighting
• Multi-function display for: graphic tank indication with reserve warning light, rpm
counter, control light for suction rpm limitation, working hour recorder, warning and
control lights for cooling water, oil pressure, charging control

ENGINE
• Volkswagen 3 cylinder 4 stroke aluminium engine with electronic fuel injection
• Output 50 kW at 5400 rpm.
• Displacement 999cm³
• Cooling by closed cooling water circulation with heat exchanger and additional cooler.
• Electronic two-stage rpm limitation for suction and max. rpm acting on the injection
unit, contactless battery ignition, maintenance-free valve operation thanks to roller
lever.
• Starter: electric start with one-man emergency system through starter cable (optionally)
• Shapely symmetric plastic cowling
• 17 l Fuel tank for unleaded premium gasoline (ROZ 95), alternatively regular gasoline
(ROZ 91), Engine control by knock sensor
• Fuel pump with filling level indicator integrated in tank, fuel cock is deleted
LIGHTING 1 Halogen spotlight, extendible and can be
swiveled and tilted in all directions
CARRYING FRAME High-strength light metal frame with four
ergonomically hinged and tunable handles as well as
rubberized cold hand guard.

DIMENSIONS
• Length 1039 mm
• Width 720 mm
• Height 846 mm
WEIGHT approx. 188 kg (ready for action)

Inclusion:

1pc Strainer
2pc Suction Hose
1pc Nozzle
1pc 2.5” x 30m Eurohose

6 Months Service Warranty
