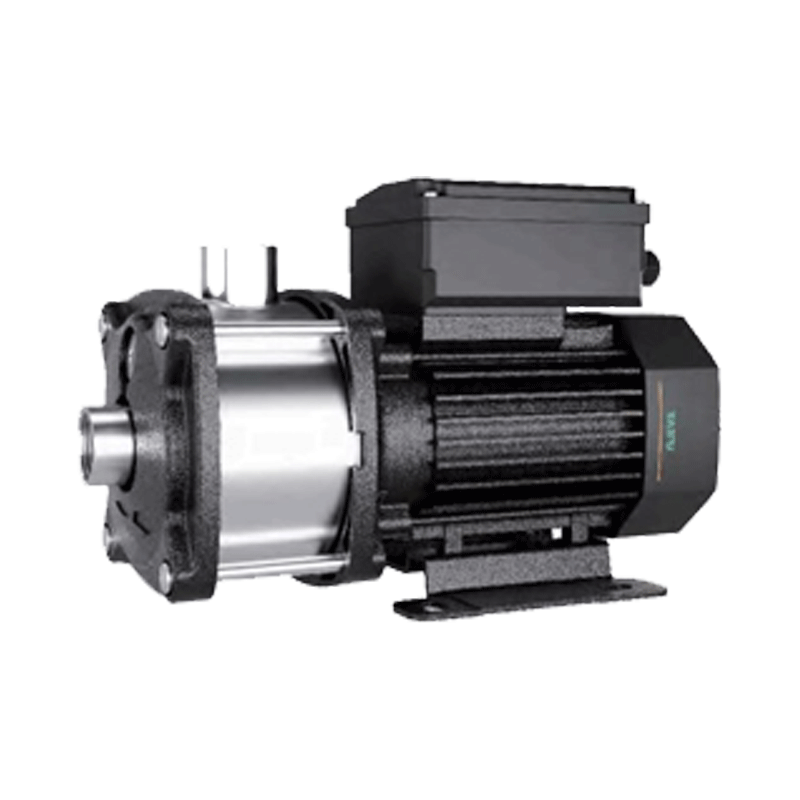

Taifu TMH Stainless Steel Horizontal Multistage Centrifugal Pump
Working Conditions
- Thin and clean liquid that cannot react chemically with the pump material, non inflammable and explosive liquid without solid particles and fibers
- When the density of the conveying medium is bigger than clean water, a big power motor id required.
- Medium temperature range: 0°C-60°C
-Maximum ambient temperature: +40°C
- Maximum installation height: related to factors such as pump NPSH, medium temperature, sea level height of installation location, and inlet pipeline loss and so on
- Maximum working pressure: 10 Bar
- Maximum inlet prssure: limited by the maximum working pressure
Advantages & features
- Fully enclosed, air-cooled, squirrel - cage motor
- Working mode: S1
-Protection class: IPX4
-Insulation class: F
- Standard voltage: Single Phase 220V/50Hz
three phase 380V/50Hz
- Single phase motor equip with a built-in thermal overload protector. three phase motor must be connected to motor starter according to local regulations
- Impeller, pump body, diffusor , stainless steel 304
Model
|
Power | Inlet/Outlet |
Q(m3/h)
|
0
|
1
|
2
|
3
|
4
|
4.5
|
W | In | ||||||||
TMH(m)2-6 | 750 | 1"x1" | H(m) | 57 | 51.5 | 44 | 30.5 | 12.5 | 4 |
