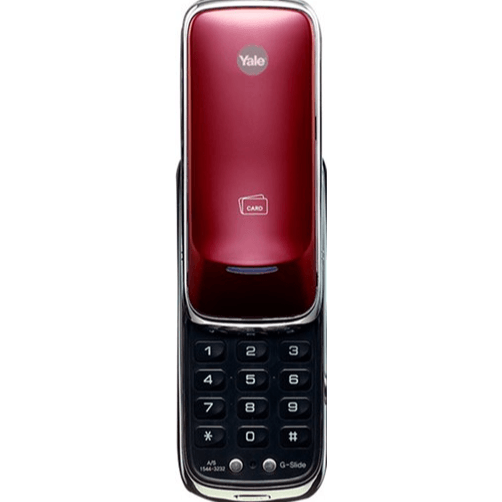

Yale G Slide Digital Rim Lock Type Door Lock

by Yale

Yale G Slide Digital Rim Lock Type Door Lock

  • Various Access
    Multiple access (Pin Code, RFID Card, Bluetooth (via Yale Link App - Optional))

  • Internal Forced Lock
    It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.

  • Automatic Locking
    After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)

  • Low battery alarm and emergency power supply terminal
    It warns in case of low battery with alarm and LED icon. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

  • Bluetooth - via Yale Link app
    G-Slide is compatiable with Bluetooth access available on your Smartphone (with Bluetooth module).

  • WiFi supported - via Yale Bridge (Optional)
    Remotely access your smart lock from anywhere. Able to track when & who accessed your door. Runs on 2.4Ghz WiFi bandwidth.

  • Applicable for Sliding Door
    For wooden and metal sliding door


Type Rim Lock
Fingerprint None
Card Up to 40 cards
Mechanical key None
PIN code user Up to 30 different user codes
Color Rose Red
Thickness 35-50mm
Backset 60 mm
Front body dimension 31.7 (W) x 61 (H) x 144.7 (D) mm
Back body dimension 36 (W) x 72 (H) x 185 (D) mm
Door Type Wood (Swing/Sliding)
