Yale J-20 Digital Rim Lock Type Door Lock

by Yale

Yale J-20 Digital Rim Lock Type Door Lock

  • Always in the know
    The activity feed in the Yale Access App tracks how and  and when your door was locked or unlocked.

  • Control who has access
    Give access to people you want to let in or out whenever you're not home.

  • Keep your home secure
    Check if your door is locked from anywhere.

  • Various Access
    Multiple access (Pin Code, RFID Card and Smart Ecosystem (via Yale Access app - Optional).

  • Bluetooth - via Yale Access app (Optional)
    J20A is compatible with Bluetooth access available on your Smartphone (with Bluetooth module).

  • WiFi supported - via Yale Access Bridge (Optional)
    Remotely access your smart lock from anywhere. Able to track when & who accessed your door and connect your Smart Lock to your Smart Home System.

  • Touch Keypad
    Wake the device with your palm and leave no trace of fingerprints

  • Fake PIN Code
    To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.

  • Automatic Locking
    After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)

  • Internal Forced Lock
    It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.

  • Alarm (Break-in / Damage)
    50dB alarm goes off if anyone attempts to damage the lock, force the door open.

  • Low battery alarm and emergency power supply terminal
    It warns in case of low battery with alarm and LED icon. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.


Type Rim Lock
Fingerprint None
Card Up to 100 cards
Mechanical key None
PIN code user Up to 100 different user codes
Color Black
Thickness 35-50mm
Backset 60mm

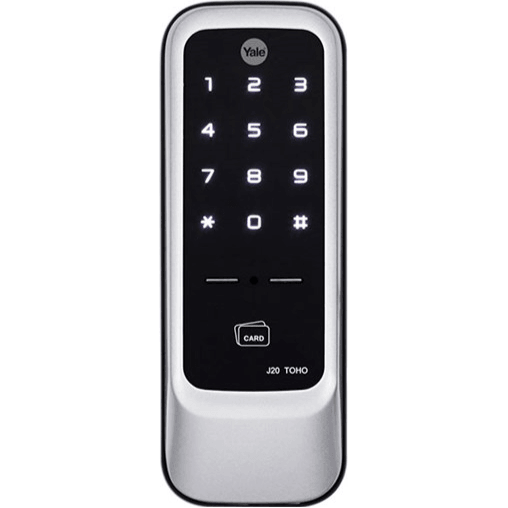

Front body dimension 62 (W) x 179.8 (H) x 18 (D) mm

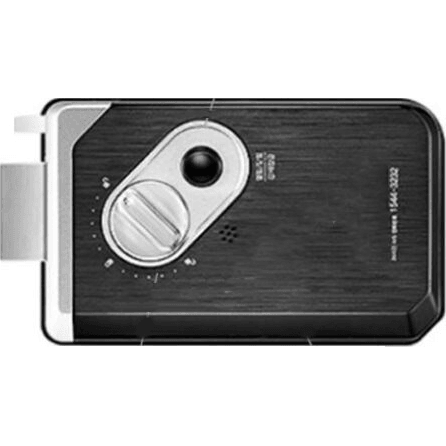

Back body dimension 142.1 (W) x 87.1 (H) x 36.4 (D) mm
Door Type Wood
