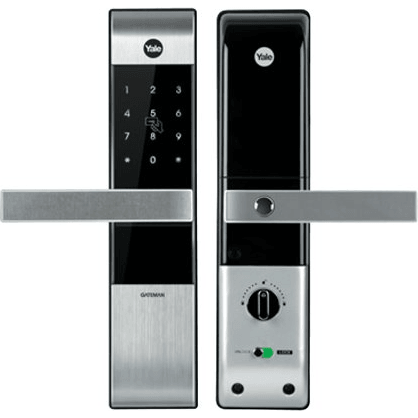

Yale YDM 3109 Digital Mortise Type Door Lock (Card Access)
YDM3109 mortice lock is a smart solution for residential & "light" commercial applications. 2 access solutions to open your door: RF Card key & PIN code. Innovative features, such as alarms, fake code or automatic locking, YDM3109 will provide comfort and will increase your feeling of security.
Specifications:
Type: DIN type mortise lock
Credentials:
- Pin code (6-12 digits)
- Proximity card: 4 (up to 40 users)
Mechanical key: 2
Center distance: 72mm
Backset: 60mm
Colour: silver
Door thickness: 40-80mm
Dimensions: front body 27 (D) x 68.6 (W)x306.6 (H)mm; back body 37(D)x72.8 (W9x 306.6 (H)mm
Integration: available upon request-RF link
IP 55: water resistant
Suitable for left or right opening
Features:
Double credentials (PIN code & RF Card key)
Fake PIN code
Operation status notification
Mechanical key override
Missing key invalidation
Automatic locking
Anti-panic egress with safe handle
Alarm (break-in/damage)
Low battery alarm & emergency power with 9v battery
