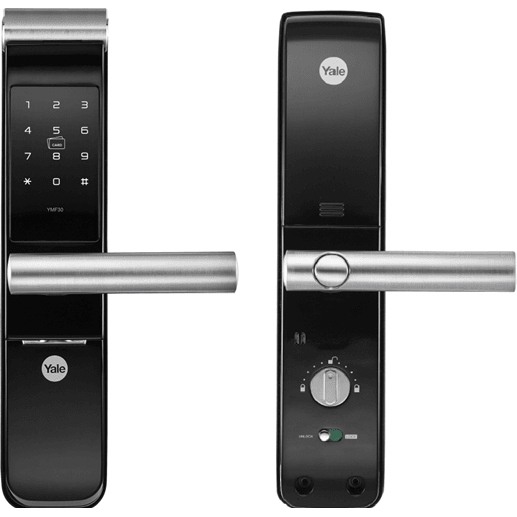

Yale YMF-30 Digital Mortise Lock with Lever Handle

by Yale

Yale YMF-30+ Digital Mortise Lock with Lever Handle

  • Various Access
    Multiple access (RFID Card, Pin Code and Key Override)

  • Remote Control (Optional)
    Remote control is available for separate purchase. It is using Wireless Floating ID technology that works up to 10m without barrier.

  • Mechanical key override (2 keys)
    For emergency, it can also be unlocked with a mechanical key.

  • Operation status notification
    Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

  • Voice Guide Feature
    Voice Guide lets you know the operation status and how to set each features and modes.

  • Automatic Locking
    After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)

  • Alarm (Break-in / Damage)
    80dB alarm goes off if anyone attempts to damage the lock, force the door open.

  • Low battery alarm and emergency power supply terminal
    It warns in case of low battery with alarm and LED icon. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

  • Fake PIN Code
    To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.


Type Mortise lock
Fingerprint None
Card 40 RFID Cards
Mechanical key 2
PIN code 4 - 10 digits
Color Black
Thickness 40-80mm
Backset 60mm
Front body dimension 66 (W) x 320 (H) x 25 (D) mm
Back body dimension 66 (W) x 320 (H) x 31 (D) mm

Door Type Wood
Handling Reversible (Left or Right)
