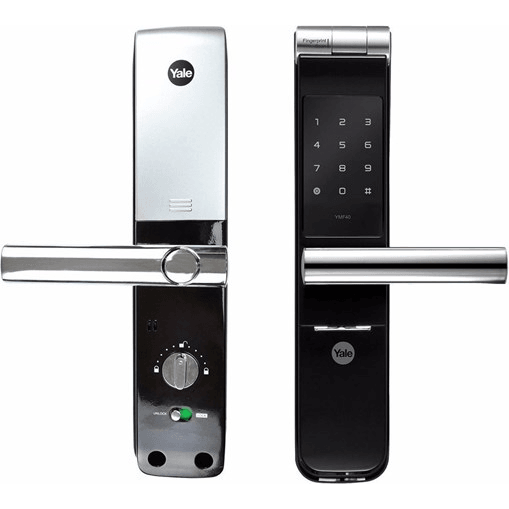

Yale YMF-40 Digital Mortise Lock with Lever Handle (All Access)

by Yale

Yale YMF-40+ Digital Mortise Lock with Lever Handle (All Access)

  • Various Access
    Yale YMF 40 has various access solutions, Fingerprint, Pin code, Key override, Remote Control for your convenience.

  • Mechanical key override
    For emergency, it can also be unlocked with a mechanical key.

  • Operation status notification
    Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

  • Voice Guide Feature
    Whenever any opeartion is made, the keypad informs you what is happened though different alignment of the numbers.

  • Automatic Locking
    The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)

  • One-touch Fingerprint Verification Method (Easy Scan)
    Easy Scan technology has been applied  to conveniently read a fingerprint in one shot to enter a fingerprint.

  • Alarm (Break-in / Damage/ Fire)
    80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects  over 55°c.

  • Low Battery and Emergency Power
    It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

  • Fake PIN code
    To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

  • Remote Control (Optional)
    Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.


Type Mortise lock
Fingerprint Up to 20
Mechanical key 2
PIN code 4-10 digits
Color Black
Thickness 40-80mm, suitable for wooden door.
Backset 60mm / 70mm
Front body dimension 66 (W) x 320 (H) x 25 (D)  mm
Back body dimension 66 (W) x 320 (H) x 31 (D)  mm
