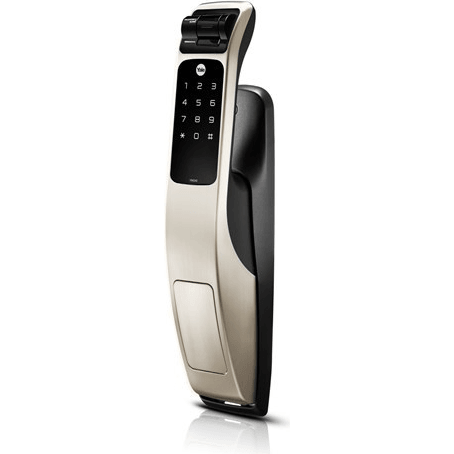

Yale YMG-40 Digital Mortise Lock Type Door Lock (Fingerprint Access)

by Yale
Color: Satin Nickel

Yale YMG-40 Digital Mortise Lock Type Door Lock (Fingerprint Access)

  • Various Access
    Multiple access (Fingerprint, Pin Code and Key Override)

  • Push-pull handle
    Innovative and convenient push-pull handles, opening the door inside and outside is equally easy, saving effort

  • Voice Guide Feature
    Voice Guide lets you know the operation status and how to set each features and modes.

  • Alarm (Break-in / Damage)
    80dB alarm goes off if anyone attempts to damage the lock, force the door open.

  • Low battery alarm and emergency power supply terminal
    It warns in case of low battery with alarm and LED icon. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

  • Internal Forced Lock
    It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.

  • Fake PIN Code
    To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.

  • Automatic Locking
    After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)


Type Mortise lock
Fingerprint Up to 20
 Card None
Mechanical key 2
PIN code 4 - 10 digits
Color Red Bronze and Satin Nickel
Thickness 40-80mm
Backset 60mm
Front body dimension 76 (W) x 359.1 (H) x 67.6 (D) mm
Back body dimension 76 (W) x 359.1 (H) x 65.2 (D) mm

Door Type Wood
