Zekoki
Zekoki Silent Type Diesel Generator Set With ATS (Cummins)
Product SKU:
Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
₱735,000.00
Want it delivered by
Quality & Affordability in Synergy

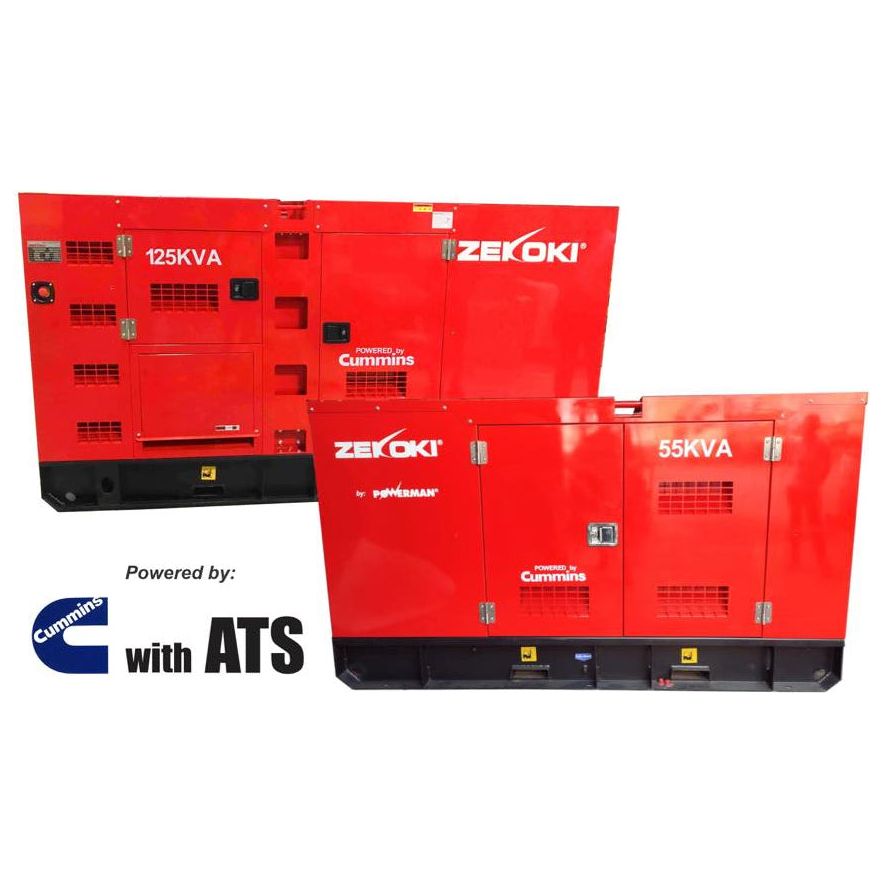

Zekoki Silent Type Diesel Generator Set With ATS (Cummins)

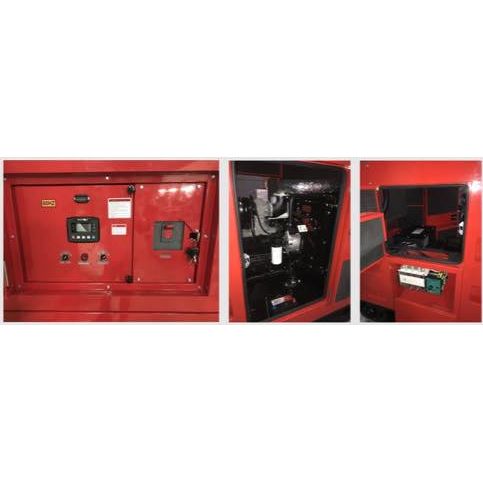

- SMARTGEN HGM6120 CONTROL DIGITAL PANEL BOARD AND CONTROL MODULE
| Genset Code / Model | ZKK68000D-S1-ATS | ZKK68000D-S3-ATS | ZKK125000-51-ATS |
ZKK125000-S3-ATS
|
| Genset Type | SILENT TYPE | |||
| Prime Power Output | 50kVA/ 50kW | 62kVA/ 50kW | 91kVA / 91kW | 114kVA / 91 kW |
| Standby Power Output | 55kVA/ 55kW | 68kVA/ 55kW | 100kVA / 100kW | 125kVA / 100kW |
| Consumption 100% (L/H) | 15.8 | 15.8 | 26.3 | 26.3 |
| dBA @7m | 70 | 70 | 70 | 70 |
| Fuel Tank Capacity (L) | 200 | 200 | 300 | 300 |
|
ENGINE SPECIFICATION
|
Engine Model | 4BTA3.9-G2 | 4BTA3.9-G2 | 6BT5.9-G2 | 6BT5.9-G2 |
| Number of Cylinders | 4 | 4 | 6 | 6 | |
| Cylinder arrangement | Vertical In-Line | ||||
| Cycle | 4-Stroke | ||||
| Aspiration | Turbocharged | ||||
| Bore x Stroke(mm x mm) | 102*120 | 102*120 | 102*120 | 102*120 | |
| Displacement (Liter) | 3.9 | 3.9 | 5.9 | 5.9 | |
| Compression Ratio | 16.5: 1 | 16.5:1 | 17.5:1 | 17.5:1 | |
| Prime Power/Speed (kW/rpm) | 60 / 1800 | 60 / 1800 | 105 / 1800 | 105 / 1800 | |
| Standby Power/Speed (kW/rpm) | 65/1800 | 65/1800 | 115 / 1800 | 115 /1800 | |
| Speed Governor | Electrical | Electrical | Mechanical | Mechanical | |
| Cooling System | Water-cooled, 40°c Radiator | ||||
| Speed Stability (%) | ≤5% | ≤5% | ≤5% | ≤5% | |
| Total lubrication system capacity (L) | 11 | 11 | 16.4 | 16.4 | |
| Coolant capacity (without radiator) (L) | 7.9 | 7.9 | 9.1 | 9.1 | |
| Fuel Consumption at 100% Load (g/kWh) | 220(at1800RPM) | 221(at1800RPM) | |||
| Starter Motor | DC24V | ||||
| Alternator | AC24V | ||||
|
ALTERNATOR
|
Alternator Model | KAL224E2 | KAL224D2 | KALll274E | KALll224L-5 |
| ATS Current (A) | 400 | 250 | 630 | 400 | |
| Voltage (V) | 220 | 127/220 | 220 | 220/127 | |
| Rated Current (AMP) | 227.2 | 164 | 413.6 | 298.5 | |
| Exciter type | Brushless, Self-Excited | ||||
| Power Factor | 1 | 0.8 | 1 | 0.8 | |
| Voltage Adjust range | ≤5% | ≤5% | ≤5% | ≤5% | |
| Voltage Regulation NL-FL | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | |
| Insulation Grade | H | H | H | H | |
| Protection Grade | IP23 | IP23 | IP23 | IP23 | |
| Overall Size L x W x H (cm) | 228x102x133 | 271X114x159 | |||
| Weight (kg.) | 1100kg | 1450kg | |||
| Price | 735,000.00 | 735,000.00 | 975,000.00 | 975,000.00 | |
3 Months Service Warranty
