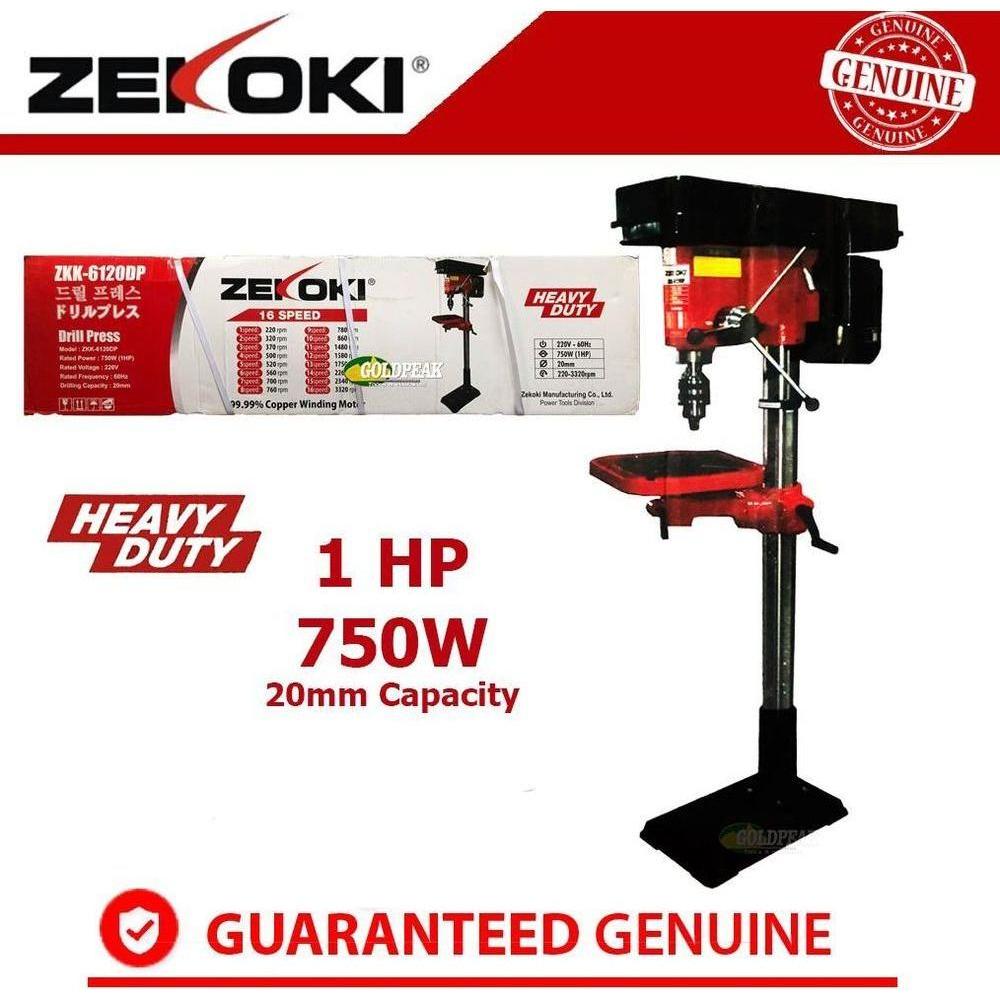

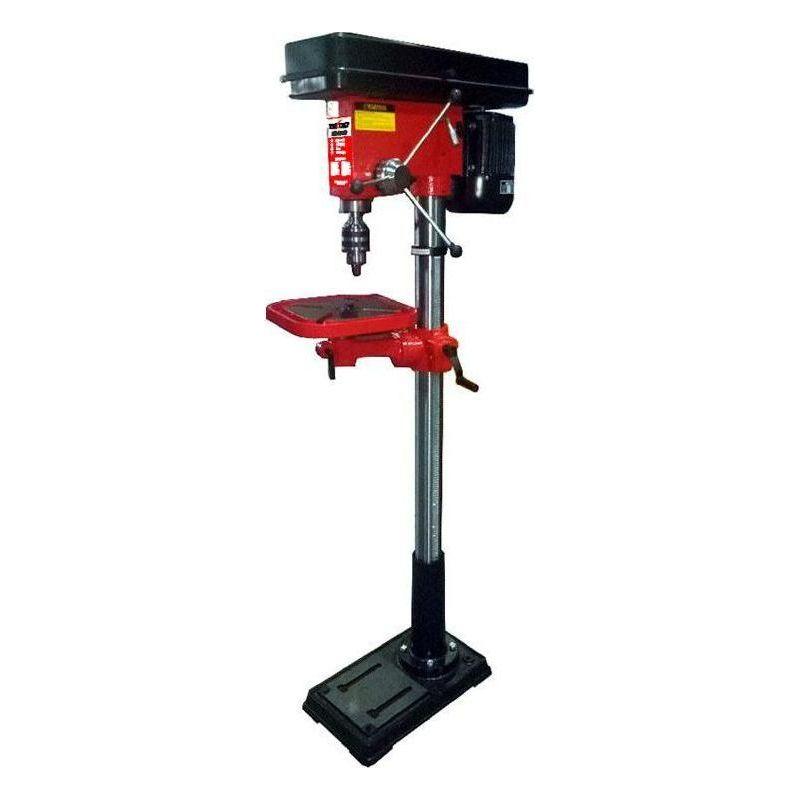

- Zekoki ZKK-6120DP Drll Press 750W(1HP) Zekoki ZKK-6120DP Drll Press 750W(1HP)
- Description
- Reviews
Quality & Affordability in Synergy
99.99% Copper Winding Motor
Features
- 16 Speed for better matching of speed to application
- 20mm drilling cpacity for all large drilling applications
- Locking depth stop for accurate blind hole drilling
- Fully Adjustable Table with Angle Indicator
- Cast Iron Base for added stability
Specifications
Drilling Capability : 20mm
Power Input : 750W(1HP)
Spindle Travel : 80mm
Spindle Taper : MT2-B22
Class of Speed : 12
Swing : 346mm
Table Size (mm) : 290×290
Base size :(mm) : 460×270
Column Diameter : 70mm
Height (mm) : 1600
Packing Size : 1140x500x300
N.W/G(Kg) : 61.5/64.5
16 Speed Guide |
|||
1 speed: | 220 rpm | 9 speed: | 780 rpm |
2 speed: | 320 rpm | 10 speed: | 860 rpm |
3 speed: | 370 rpm | 11 speed: | 1480 rpm |
4 speed: | 500 rpm | 12 speed: | 1580 rpm |
5 speed: | 520 rpm | 13 speed: | 1750 rpm |
6 speed: | 560 rpm | 14 speed: | 2260 rpm |
7 speed: | 700 rpm | 15 speed: | 2340 rpm |
8 speed: | 760 rpm | 16 speed: | 3320 rpm |
3 Months Service Warranty
