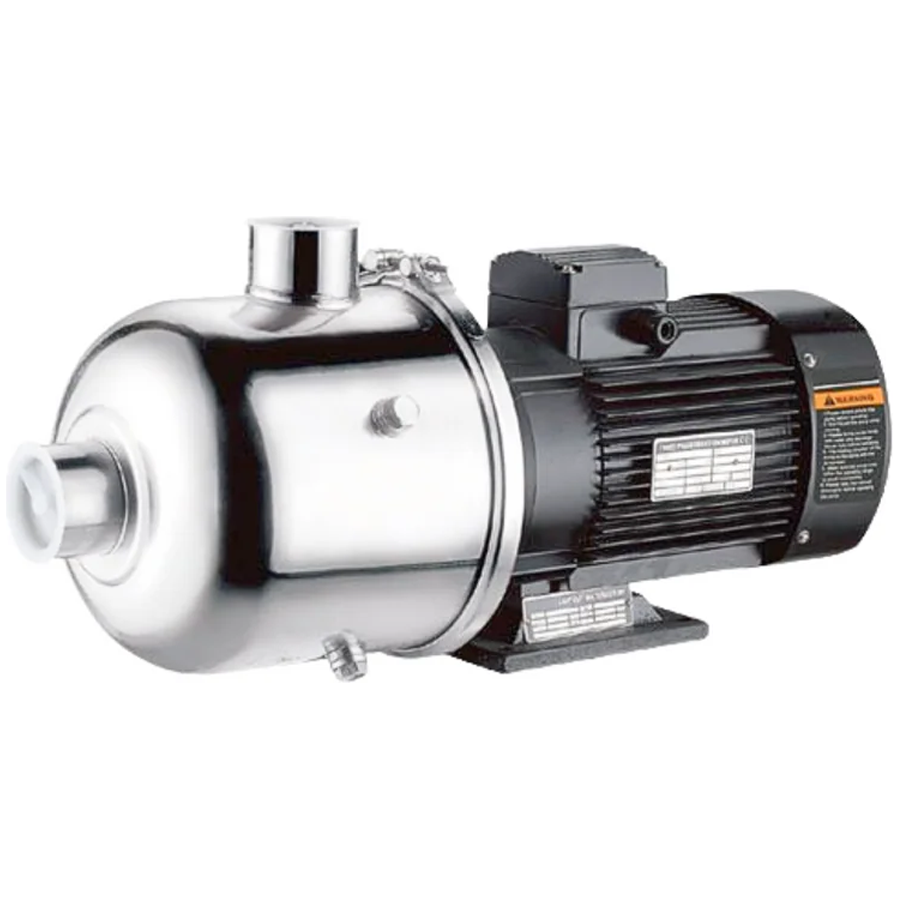

Adelino AW Horizontal Centrifugal Multi Stage Pump
- Temperature range of medium: Normal type 0~+68℃, hot water type 0~+120℃
- Maximum ambient temperature: +40 ℃
- Maximum working pressure: 10 bar
- When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
- pH: 6.5 to 8.5
Application Fields :
- Industrial cleansing
- Environmental application
- Air conditioner system
- Aquaculture
- Cooling System
- Water processing(Water purification)
- Fertilization/measuring system
- Other special applications
Model
|
Power | Max Flow | Max Head | Max Range |
inlet/Outlet Diameter (mm)
|
Price
|
||
Kw | HP | Rate Current | m³/hr | (M) | M | |||
AW4-4 (BW4-4) | 1.5 | 2 | 220V,60Hz, Single Phase | 7 | 52.50 | 35~52.5 | G1 1/4 - G1 | 36,000.00 |
AW12-3 | 1.8 | 2.4 | 220V,60Hz, Single Phase | 16 | 35 | 21~35 | 2" x 2" | 49,000.00 |
