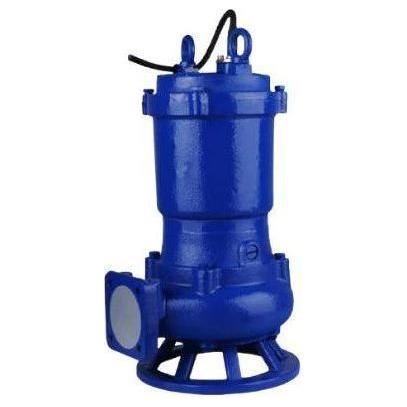

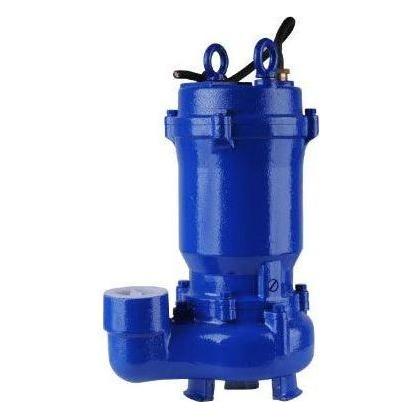

Adelino DWE Full Cast Iron Submersible Pump (Sewage / Dirty Water)
DWE series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction.
Features
- The durable whole cast iron parts design.
- The motor shaft is equipped with AISI 2 Cr13.
- C&U Bearing and 100% Copper Coil.
- 220V 60Hz
Note: actual unit may differ in color.
|
Model
|
Price
|
| DWE-04M | 8,500.00 |
| DWE-15V | 18,500.00 |
| DWE-22V | 28,000.00 |
| DWE-37V | 31,000.00 |
| DWE-55V | 56,000.00 |
| DWE-75V | 64,500.00 |
| Model | Power KW/HP |
Phase | Flow Range (m³/hr) | Head Range (m) | Solid Passage (mm) | Outlet Diameter (DN) | |
| DWE-04M | 0.4 | 0.5 | 1 | 4~15 | 5~9 | 20 | 2 |
| DWE-15V | 1.5 | 2 | 3 | 0~16 | 11~17 | 22 | 2 |
| DWE-22V | 2.2 | 3 | 3 | 20~34 | 9~15 | 25 | 3 |
| DWE-37V | 3.7 | 5 | 3 | 12~34 | 14~22 | 25 | 3 |
| DWE-55V | 5.5 | 7.5 | 3 | 16~44 | 17~25 | 30 | 4 |
| DWE-75V | 7.5 | 10 | 3 | 35~56 | 16~24 | 30 | 4 |
*Full cast iron configuration, widely used in sewage water disposal, and also widely used in construction sewage water drainage, and sewage water treatment. Spare parts elbow is included.
