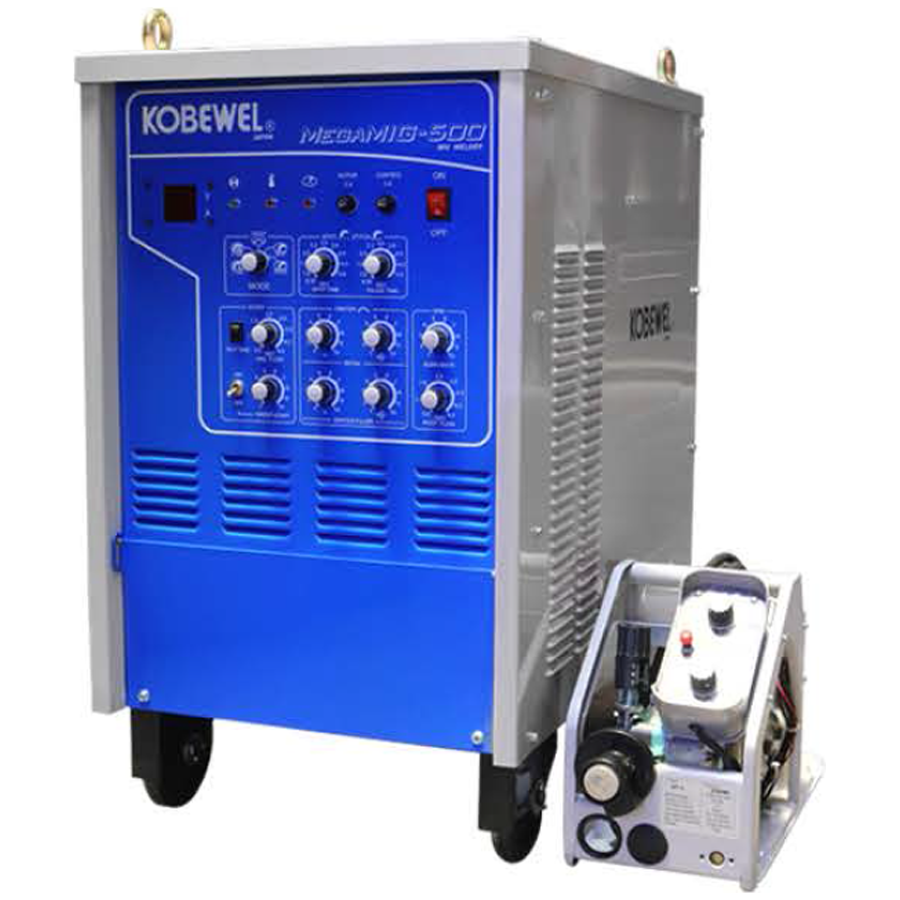

Kobewel MEGAMIG-500 MIG/MAG ARC Welding Machine

Kobewel MEGAMIG-500 MIG/MAG ARC Welding Machine

With Separate Wire Feeder

Input Voltage 220 V
Frequency I Phase  60 Hz I 3 Ph
Input I Welding Cable  6/70 mm'
Input Power  29.6 kVA
Weight  213 Kg
Power Factor  0.85
Current Range 40 - 500 A
Duty Cycle  50% @ 500A
Wire Size    MS/SS= 0.6 - 2.0 mm
                    AL= 0.8 - 2.0 mm
Adjustment Range   Continues

Welding Parameter

Spot Time 0.3S - 5.0 sec
No Load Voltage 16 - 50
Interval Time 0.3S - 5.0 sec
Gas Pre-flow Time 0 - 0.6 sec
Soft Start Time 0.4 - 1. 7 sec
Burn back Time 0- 0.2S sec
Gas Post-flow Time   0.2 - 3 sec

WF-4 Wire Feeder

Input Voltage 2 V
Frequency I Phase  60 Hz I 1 Ph
Input Power 120 W
Wire Size 0.6 - 1.6 mm
Wire Feed Speed    0.5 - 20 m/min
Weight 8 Kg

Inclusion:
• 1 set MIG Torch #500(3 m Long) + 5 pcs Contact Tip
• 1 pc Earth Clamp+ Cable (50 mm' ) (3 m Long)
• 1 pc C02 Regulator with Heater (220 V)
• 1 pc Air Hose (3 m Long)
