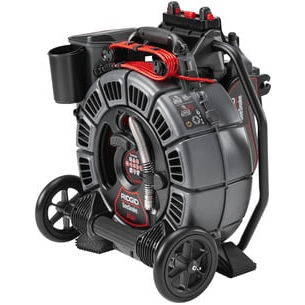

Ridgid SeeSnake® MAX rM200 Series Camera Reel / Inspection Camera
*Monitor not included
The rM200 Camera System combines portability with the versatility of the D2 drum series, offering different combinations of push cable stiffness and spring flexibility to tackle any inspection job.

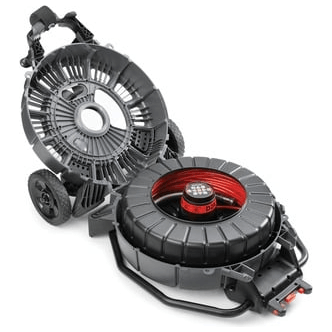

Interchangeability

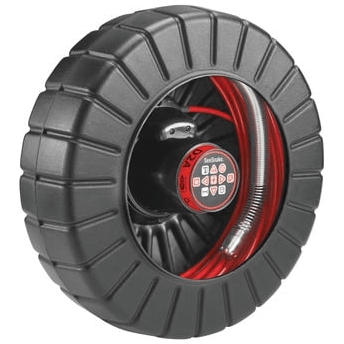

- The D2 drum series currently consists of the D2A and D2B drums.
- The rM200 comes with your choice of drum.
- Either drum can be purchased separately.
- Own them both to quickly and easily interchange drums for on-the-job flexibility.
Pushability
- Drums feature different push cable lengths, diameters, stiffness and springs.
- Chose the drum that enables you to easily negotiate turns and tees – there’s a drum that’s right for you!
Portability
- Easy to transport with wheels or carry handle.
- Dock the CS6x or CS65XR digital monitor for convenient transport, operation and storage.
Specifications
RM200A
| Pipe Capacity (when used with a 5" (12.5 cm) pipe guide). | 1.5" to 8" (3.8 cm to 20.3 cm) |
| Push Cable Length | 200' (61 m) |
| Diameter | 0.3" (0.76 cm) |
| Fiberglass Core Diameter | 0.14" (0.36 cm) |
| Minimum Bend Radius | 2.8" (7.1 cm) |
| System Weight | 36.3 lbs. (16.5 kg) |
| Drum Weight | 16.4 lbs. (7.4kg) |
| Drum Diameter | 17" (43.2 cm) |
| Camera View | Self-leveling |
| Length | 1" (2.6 cm) |
| Diameter | 1" (2.5 cm) |
| Light | 6 LEDs |
| Sonde Frequency | 512 Hz |
| Resolution | NTSC 656 x 492 pixels; PAL 768 x 576 pixels |
| Spring Assembly Type | Single. Length, 12" (30.8 cm) |
RM200B
| Pipe Capacity (when used with a 5" (12.5 cm) pipe guide). | 2" to 8" (5.1 cm to 20.3 cm) |
| Push Cable Length | 165' (50 m) |
| Diameter | 0.35" (0.90 cm) |
| Fiberglass Core Diameter | 0.18" (0.45 cm) |
| Minimum Bend Radius | 3.5" (8.9 cm) |
| System Weight | 39.2 lbs. (17.8 kg) |
| Drum Weight | 19.2 lbs. (8.7kg) |
| Drum Diameter | 17" (43.2 cm) |
| Camera View | Self-leveling |
| Length | 1" (2.6 cm) |
| Diameter | 1" (2.5 cm) |
| Light | 6 LEDs |
| Sonde Frequency | 512 Hz |
| Resolution | NTSC 656 x 492 pixels; PAL 768 x 576 pixels |
| Spring Assembly Type | Dual nested. Length, 17" (43.3 cm) |
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
Price
|
| 42348 | rM200A | Reel, SeeSnake MAX rM200A w/D2A Drum | 551,900.00 |
| 47528 | rM200B | Reel, SeeSnake MAX rM200B w/D2B Drum | 740,550.00 |
| 47538 | rM200 | Drum, rM200 D2B | 430,400.00 |
| 47548 | rM200 | Drum, rM200 D2A | 498,050.00 |
Accessories
| CATALOG NUMBER | DESCRIPTION | Price |
| 35338 | 45 mm Pipe Guide, 25 mm Camera, Pkg of 2 | 3,300.00 |
| 40598 | 60 mm Pipe Guide, 25 mm Camera, Pkg of 2 | 3,250.00 |
| 46708 | 85 mm Pipe Guide, 25 mm Camera, Pkg of 2 | 2,950.00 |
| 46713 | 125 mm Pipe Guide, 25 mm Camera, Pkg of 2 | 3,450.00 |
| 47793 | 36 mm Pipe Guide, 25 mm Camera, Pkg of 1 | 7,500.00 |
